MULTIVAP® Evaporator

High capacity parallel batch evaporator for large batches of samples

Organomation Manufacturing Inc.

High capacity models hold up to 100 samples

Uniform evaporation across all samples

No adjustment needed between batches of samples

48 Position Dry Block MULTIVAP Evaporator
80 Position Dry Block MULTIVAP Evaporator
64 Position Water Bath MULTIVAP Evaporator
Custom inserts are expertly machined to fit your sample tubes
Sample racks are easily inserted and removed from the bath

Consistent, uniform evaporation across sample batches to save you time and money

From a dry block evaporator designed for nine 50 mL beakers to a water bath designed for up to 100 small volume samples, Organomation’s MULTIVAP product line is the perfect evaporator to gently and efficiently concentrate batches of similar samples. The 9, 30, 48, and 80 position units are available in high temperature dry block models, while the 64 and 100 position models utilize Organomation’s classic water bath to maximize sample evaporation.

Nitrogen gas is delivered to each sample via individual stainless steel needles connected to the hand built gas distribution manifold. The nitrogen distribution manifold raises and lowers as a unit to start or stop evaporation to all sam¬ples with one motion, ensuring uniform evaporation across sample batches. Gas flow can be turned on and off by sample row to easily conserve nitrogen when the instrument is run below capacity. All MULTIVAPs include a digital temperature controller, internal pressure reducing regulator, and timer for unattended operation.

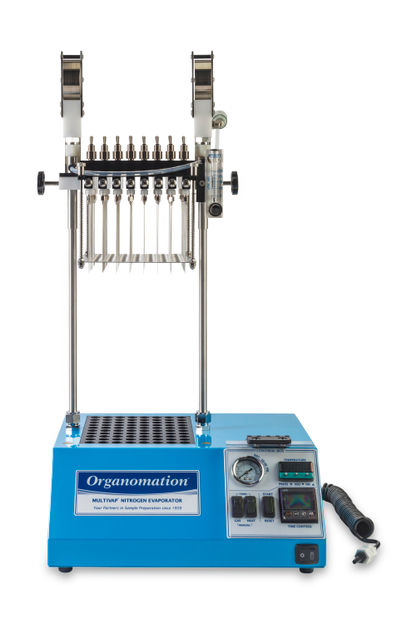

48 Position Dry Block MULTIVAP Evaporator

1

48 Position Dry Block MULTIVAP Evaporator

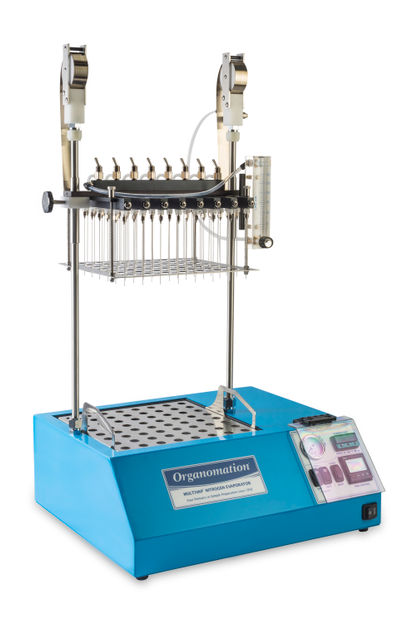

80 Position Dry Block MULTIVAP Evaporator

2

80 Position Dry Block MULTIVAP Evaporator

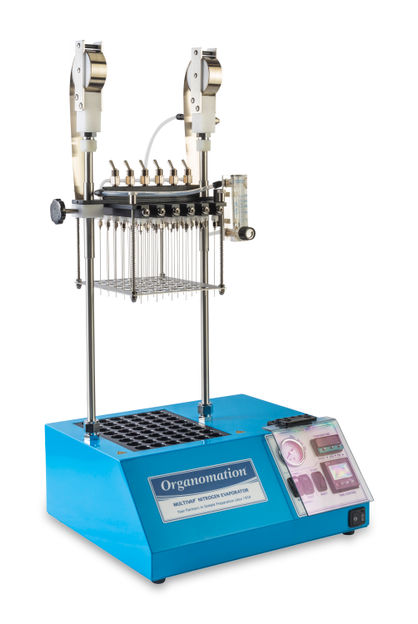

64 Position Water Bath MULTIVAP Evaporator

3

64 Position Water Bath MULTIVAP Evaporator

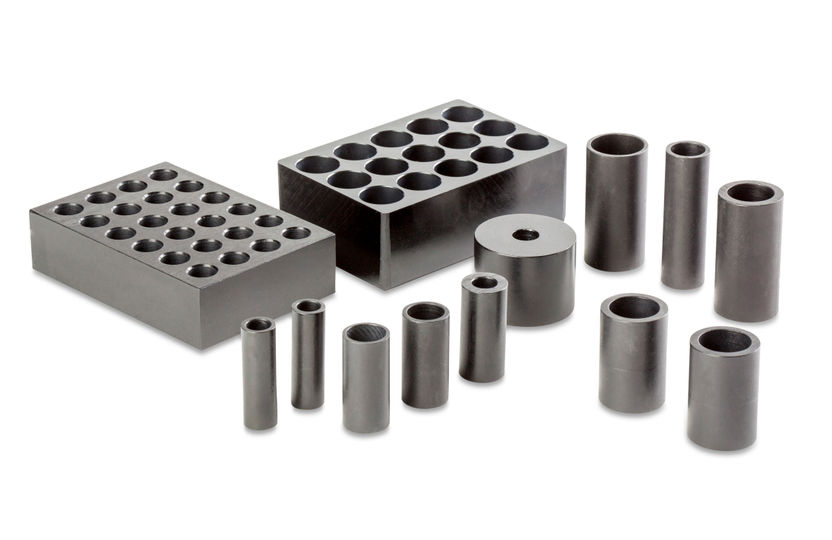

Custom inserts are expertly machined to fit your sample tubes

4

Custom inserts are expertly machined to fit your sample tubes

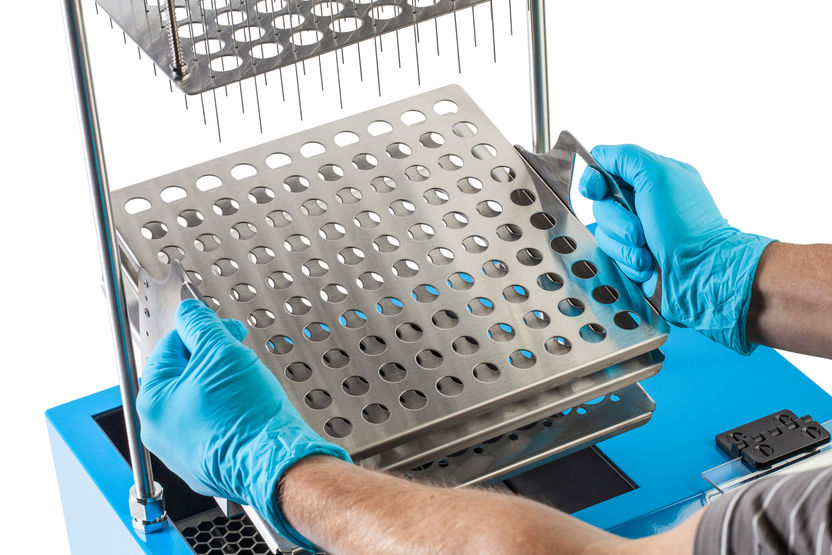

Sample racks are easily inserted and removed from the bath

5

Sample racks are easily inserted and removed from the bath

Product classification

Applications

Product categories

blowdown evaporators
evaporator systems
evaporators
nitrogen evaporator

Target Industries

Beverages
Biotechnology
Chemistry
Food
Pharma
