Gas Detection & Sensing Components
Laser Gas Detection & Infrared Sensing Components for medical and environmental applications
Axetris AG
small
single or dual-gas measurement
portable
Axetris Laser Gas Sensors and Infrared Sources allow you to measure a wide range of gases
Axetris' Laser Gas Detection modules are stand-alone, ready-to-use OEM subsystems for selective detection and monitoring of gases. Based on Tunable Diode Laser Spectrometry (TDLS), they provide a solution to many gas detection challenges in emission monitoring and process control. The technology offers unique advantages like precise optical, contact-less measurements, excellent target gas selectivity and sub ppm-level detectivity.
Benefits
- High Selectivity & Precision
- Hot-Wet Gas
Axetris Infrared Sources offer micro-machined, electrically modulated thermal infrared emitters featuring true blackbody radiation characteristics, low power consumption, high emissivity and a long lifetime.
The design is based on a resistive heating element integrated onto a thin dielectric membrane which is suspended on a micro-machined silicon structure. Infrared sources from Axetris are used in a number of gas detection applications in medical, industrial, environmental and automotive industries.
Benefits
- Thermal Black Body Emitter (2 to 14 μm)
- High Efficiency
- Fast Electrical Modulation
1

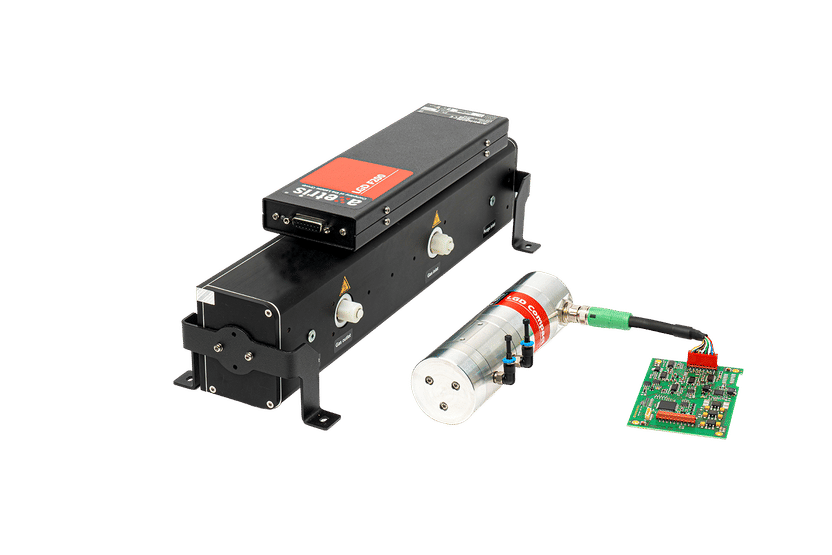

Axetris' LGD F200 module and the LGD Compact A, the portable lightweight
2

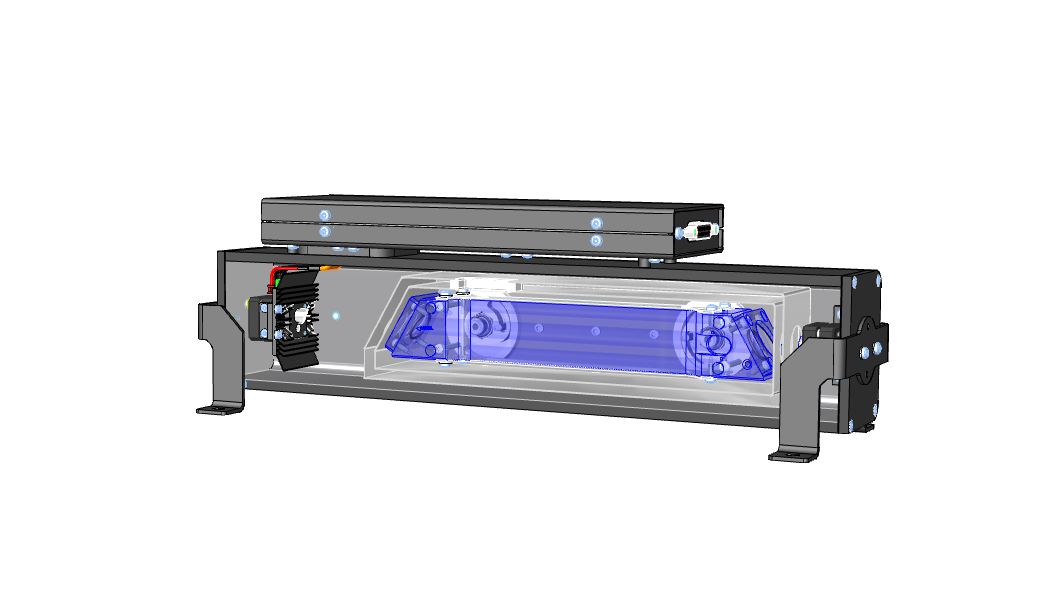

The LGD F200 OEM Module inside view
3

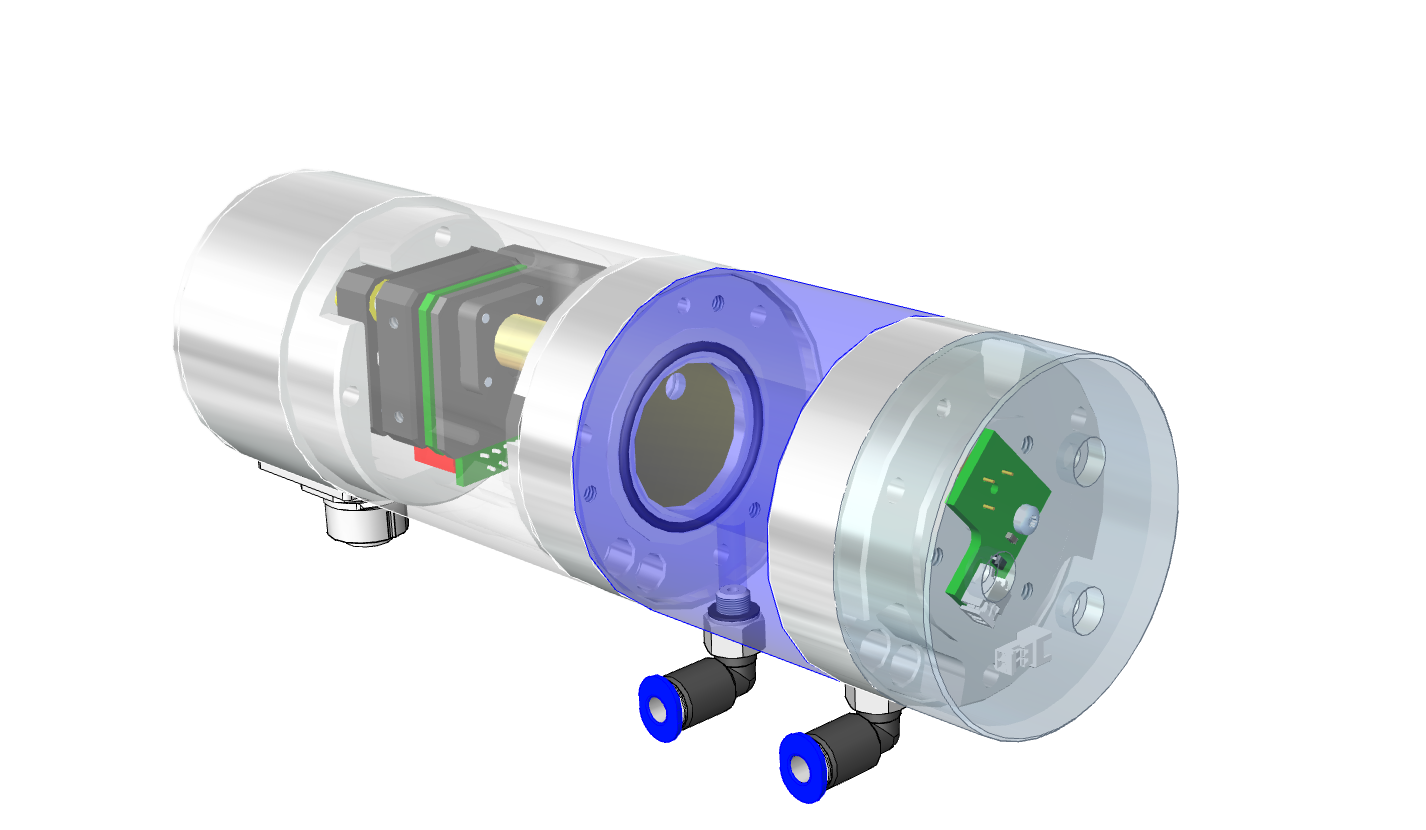

The insides of the LGD Compact-A OEM Module which is suitable for portable gas measurements by drone.
4

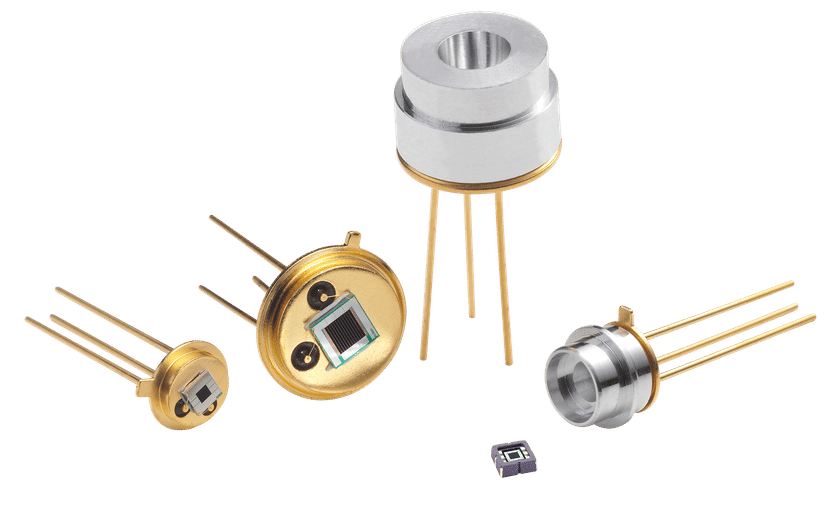

Infrared Sources product porfolio with the newest and smallest member of the family.
5

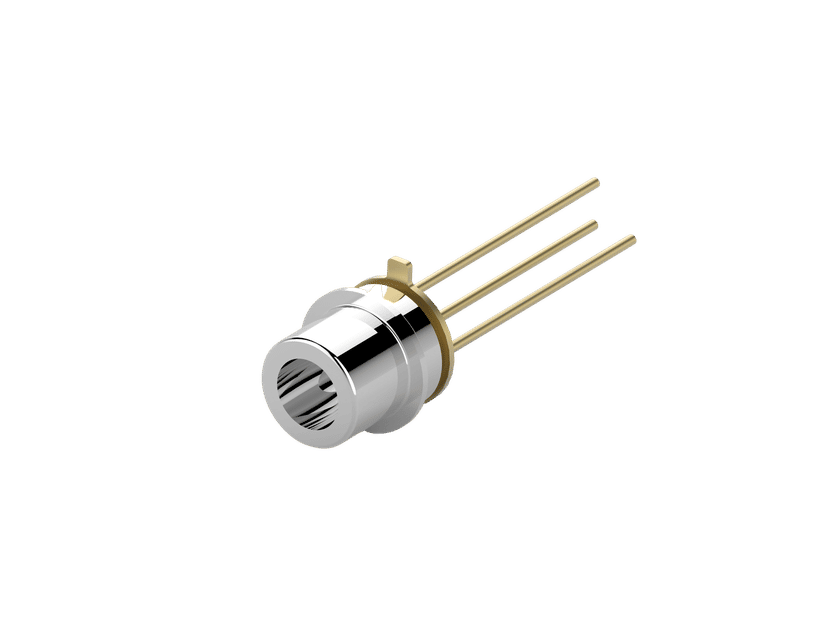

Infrared Source TO46 with Reflector 7
