ECOM spol. s.r.o.

UV VIS DAD sends scan or 4 wavelengths signal measured in external cell connected by optical cables

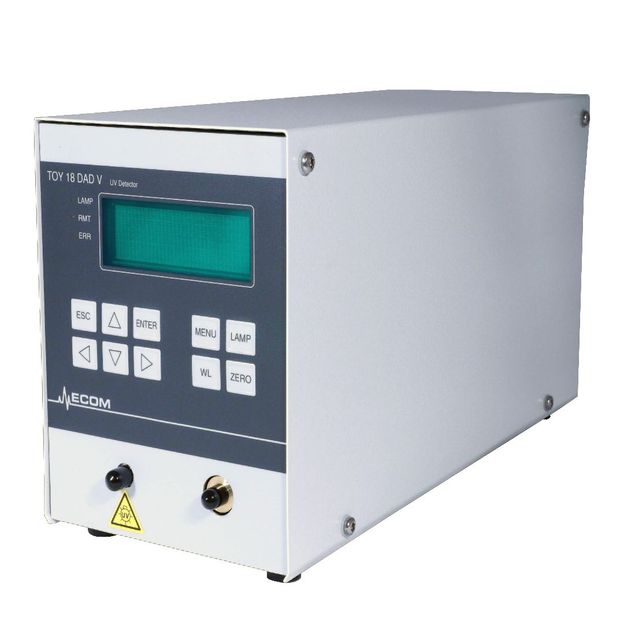

TOY18DAD VEX side view

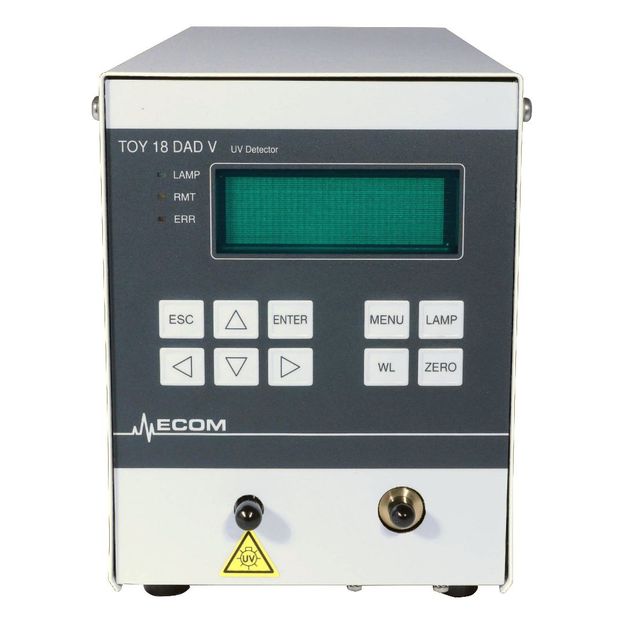

TOY18DAD VEX front view

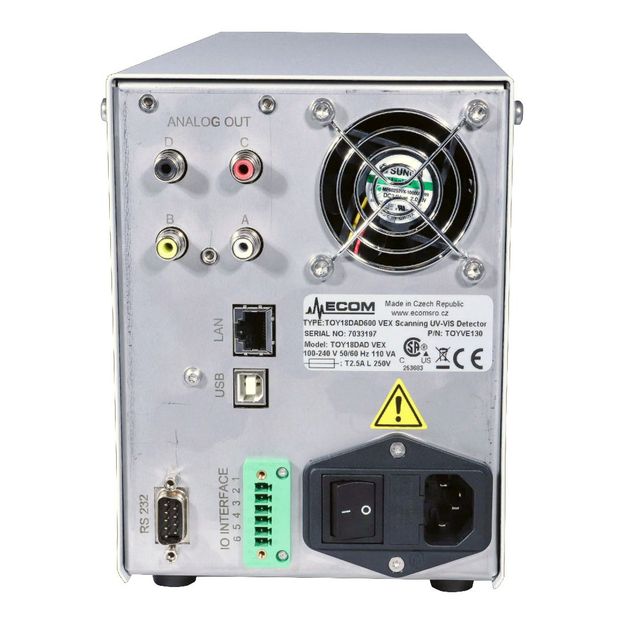

TOY18DAD VEX back view. Here are analog outputs, RS232, USB and LAN connectors and also I/O ports for logical signals

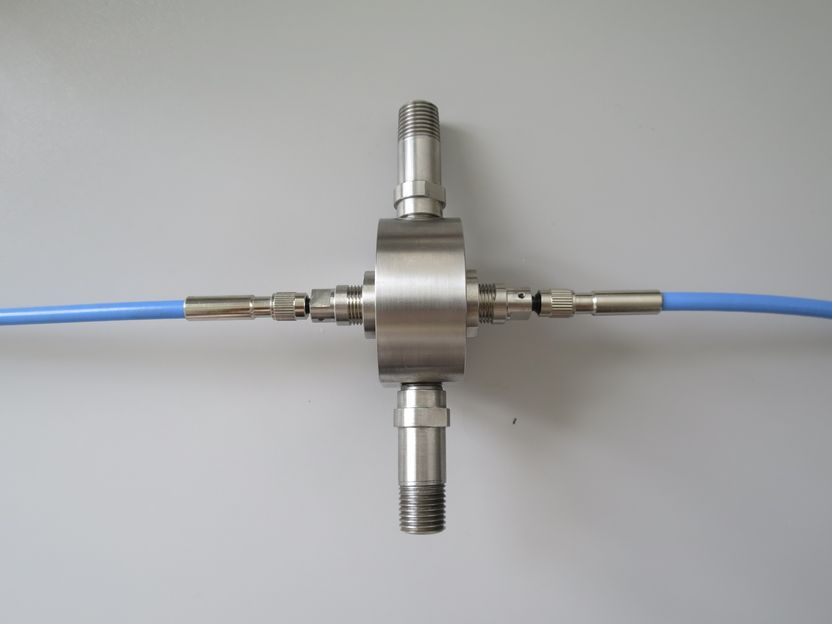

ECOM offers many external cells which can be connected to the TOY18DAD VEX detector as for example PLCC20 cell using optical cables

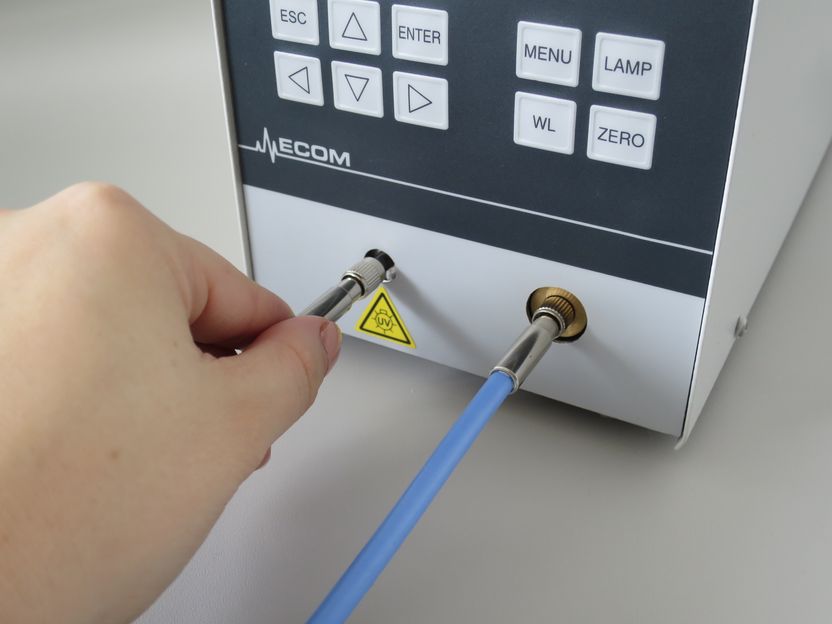

Optical cables are simply connected from front panel

‹ ›

Request information or a quote

Used in flash or prep HPLC where scan or more wavelengths signal allow to verify sample purity

ON-LINE SCAN OF WHOLE SPECTRUM WITH SPEED UP TO 20 HZ ALLOWS TO CREATE 3D GRAPH
This enables to check peak purity in fast separation applications.

MANY DIAGNOSTIC FUNCTIONS AVAILABLE ON SCREEN OR USING SERVICE SW

These functions make service easy using error description and with a lot of displayed information such as lamp working hours and light intensity values, different voltages and currents. Also unit report created by service SW contains detailed overview about unit condition and eventual issues.

COMMUNICATION USING LAN, RS232 OR USB AND ALSO FOUR ANALOG OUTPUTS

Due to its hardware is this unit universal allowing to choose communication according to customer needs but moreover is it possible to control the unit only using keyboard and screen.

THANKS TO OPTICAL CABLES CONNECTION CAN BE EXTERNAL CELL SITUATED IN DISTANT SPACE FOR MANY APPLICATIONS.

This solution allows to place the cell outside the detector in spaces where is not possible to install complete unit, because of contaminated or dangerous area. Also for big industrial systems with high flowrate is external cell needful.
