EBSD analysis systems: APEX Pegasus
Fully integrated and seamless EDS and EBSD characterization
AMETEK GmbH - EDAX Division
Easy, simultaneous EDS-EBSD collection during both EBSD pattern and scan collections
Dynamic EDS and EBSD mapping allows real-time data analysis
Optimized data acquisition, set up, and data quality










Provides users with both elemental composition and crystal structure results in one package
The Pegasus Analysis System enables the simultaneous collection of Energy Dispersive Spectroscopy (EDS) (chemistry) and Electron Backscatter Diffraction (EBSD) (crystallography) data, allowing direct correlation between the elemental content and microstructural aspects of the material being studied.
The Pegasus Analysis System is directed at companies, research facilities and universities that deal with, produce and research the characteristics of materials, metals, metal alloys, electronic components, semiconductors and superconductors and/or solar cells.

1

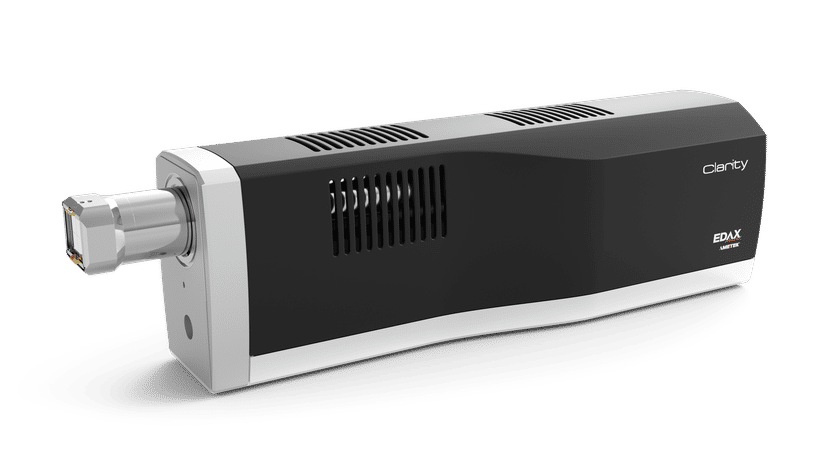

Clarity EBSD Analysis System

2

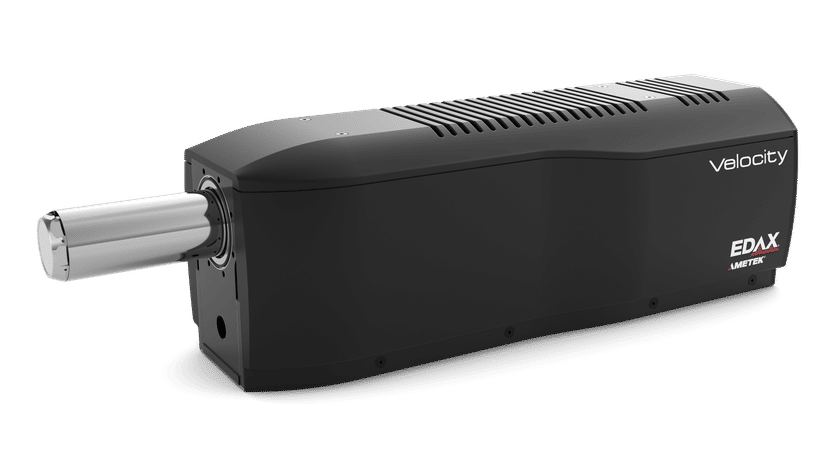

Velocity EBSD Analysis System

3

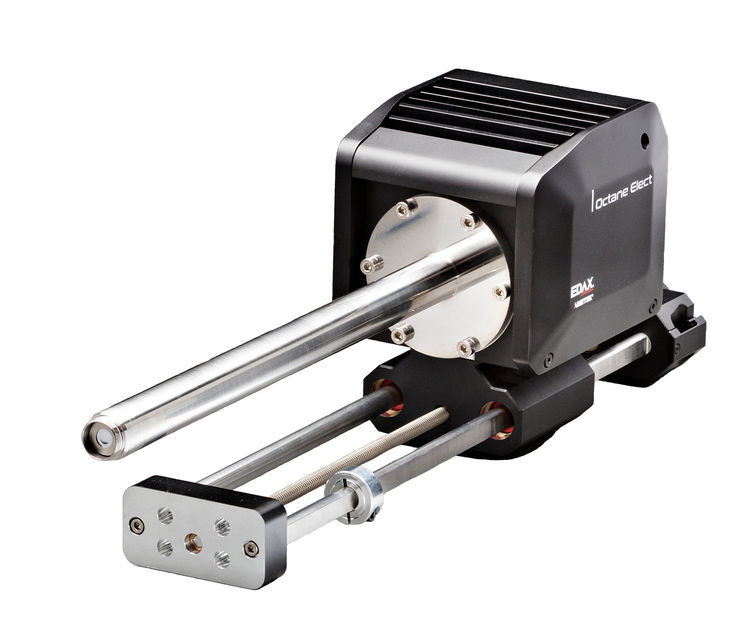

Octane Elect EDS Analysis System

4

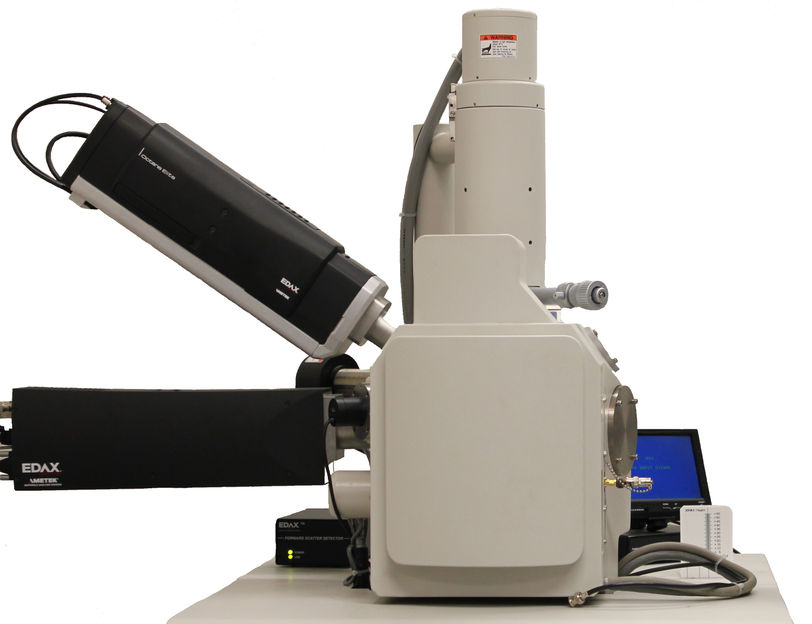

Pegasus EDS-EBSD Analysis System

5

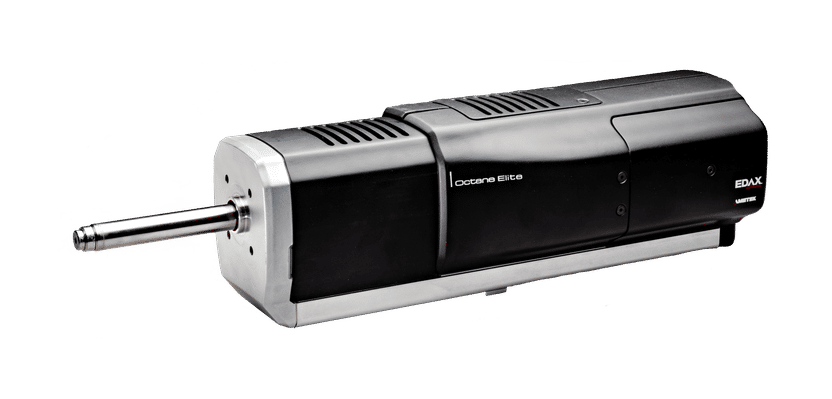

Octane Elite EDS Analysis System
