The Drum Mill is designed to grind large sample volumes to <15 µm with grinding balls.

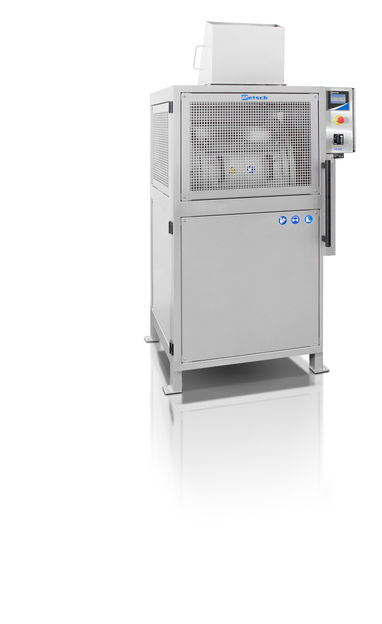

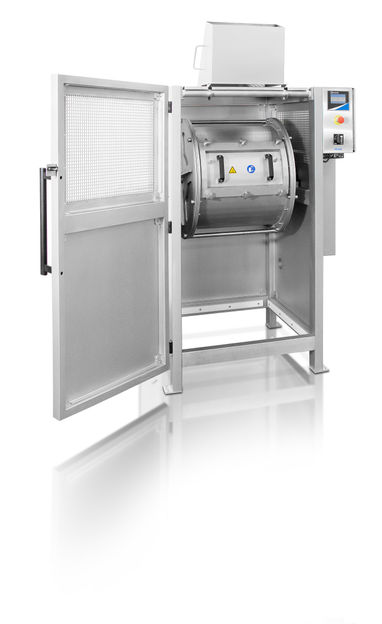

The Drum Mill TM 500 is designed to grind large sample volumes up to 35 l. It accepts feed sizes of up to 20 mm and achieves grind sizes <15 µm. Hard, brittle or fibrous samples are pulverized in the 150 l drum filled with 80 kg grinding balls. The variable speed of 10 to 50 rpm, different grinding ball sizes and the possibility of long-term grindings of up to 100 h ensure perfect adaption to sample properties as well as reproducible results. A TM 500 foodGrade model featuring a stainless steel 316L drum and hopper is available for applications where the sample must not be contaminated in any way.

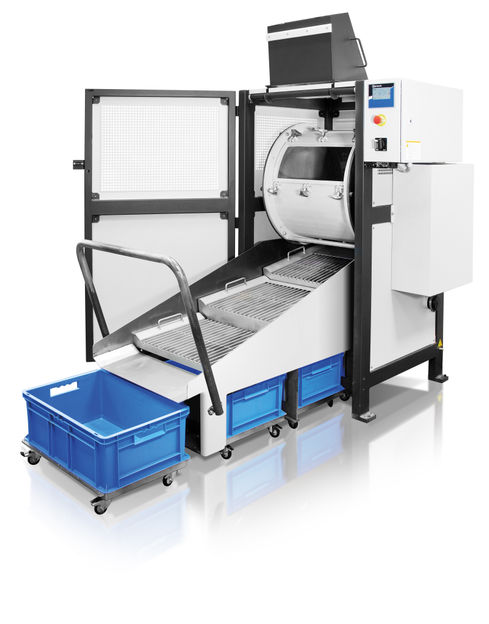

Thanks to the feed hopper and optional separating screen for grinding balls/sample, operation of the TM 500 and handling of the required 80 kg of grinding balls are ergonomic and simple. Parameters like grinding time, start delay, or interval mode are selected and stored via the operating display. Thanks to programmable grinding breaks it is also possible to process heat-sensitive sample materials. Intervals with forward and reverse mode combination are useful to avoid caking effects.
